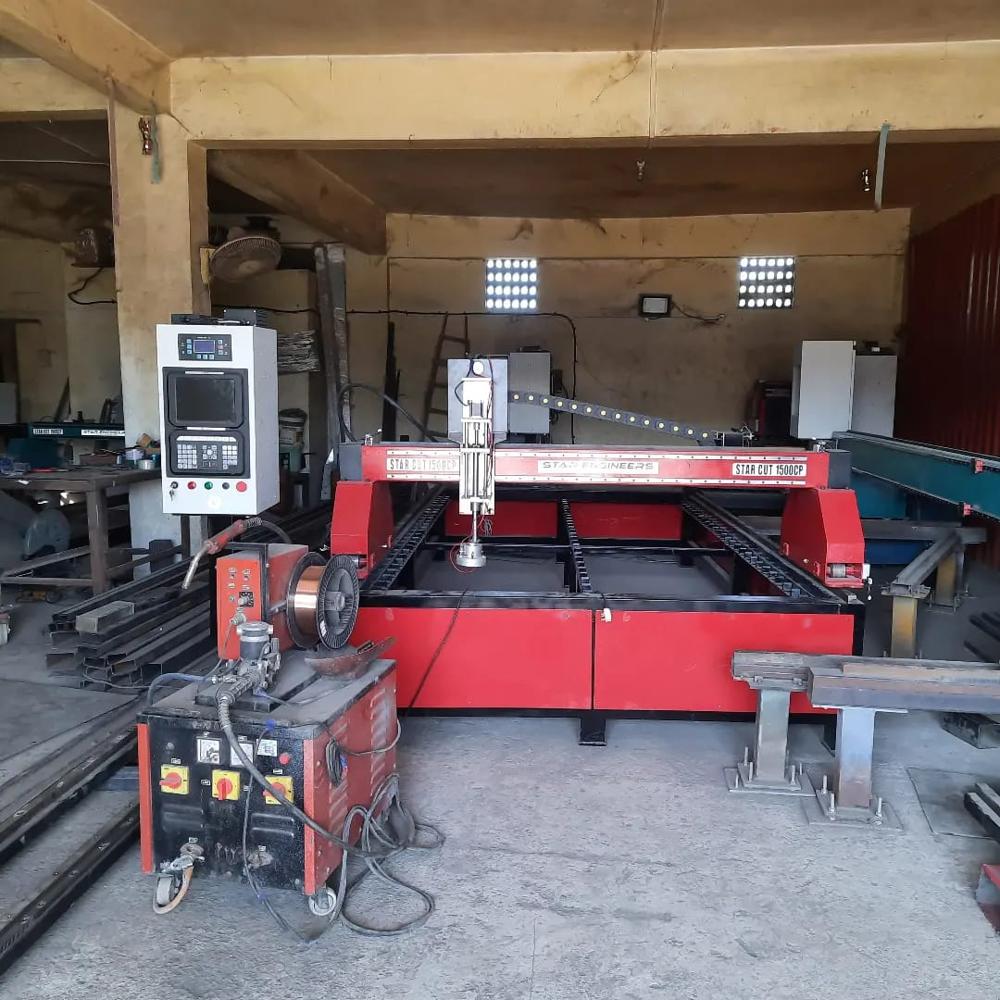

CNC PLASMA MACHINE

CNC PLASMA MACHINE Specification

Type
CNC Plasma Cutting Machine

Material
Mild Steel / Alloy Steel / Stainless Steel Construction

Capacity
1500 x 3000 mm (Sheet Size)

Computerized
Yes

Automatic Grade
Automatic

Control System
CNC based control panel

Cutting Speed
0-8000 mm/min (adjustable)

Cutting Thickness
1 mm to 25 mm (Plasma source dependent)

Cutting Function
Plasma Cutting for Metal Sheets

Cooling System
Air / Water Cooled Plasma Torch

Drive Type
Stepper / Servo Motor Drive

Weight (kg)
1500 kg (Approx.)

Dimension (L*W*H)
Approx. 2200 mm x 3500 mm x 1600 mm

Color
Red & Black

Working Environment
0C to 45C, Humidity <95%

Max Traverse Speed
12000 mm/min

Plasma Source Type
Compatible with Hypertherm, Panasonic, and Others

Display
LED Display with Operator Interface

Applicable Materials
Mild Steel, Stainless Steel, Aluminum, Copper, Brass

Power Supply
3 Phase, 380V/415V, 50Hz

Torch Height Control
Automatic Torch Height Control (ATHC)

File Transfer
USB/LAN

Repeat Positioning Accuracy
0.05 mm

Table Type
Integrated Water Table for Dust & Fume Control

Optional Features
Flame Cutting Head, Fume Extractor, Air Compressor

Safety Feature
Emergency STOP button & Overload Protection System

Transmission System
Rack and Pinion

Software Compatibility
AutoCAD, FastCAM, StarCAM Support

Noise Level
<75 dB

About CNC PLASMA MACHINE

Jump on the power of precision with our CNC Plasma Machine, hailed as the paragon of metal cutting technology. Outfitted with a fresh LED operator display and advanced CNC controls, it delivers automatic torch adjustment and superior repeat positioning down to 0.05 mm. Noble in construction with robust mild or alloy steel, it features an integrated water table for optimal dust and fume management. Order today to access the best in speed, safety, and compatibility with premier plasma sources. Experience unmatched performance-become a leader in modern fabrication!

Versatile Applications for Various Industries

This CNC Plasma Machine excels across a broad spectrum of application media, including mild steel, stainless steel, aluminum, copper, and brass. Its reliable plasma cutting function suits industries like automotive, fabrication shops, shipyards, and construction. Trusted by manufacturers, service providers, and skilled tradespeople, it offers users the technological edge to elevate production quality, achieve intricate designs, and streamline fabrication processes across demanding usage scenarios.

Dependable Supply and Export-Ready Solutions

Our CNC Plasma Machine boasts substantial supply ability, meeting bulk orders efficiently for domestic and export markets alike. Samples are available upon request for evaluation before final commitment. We service key domestic markets and arrange reliable freight solutions tailored to your facility. Contact us for the latest asking price and benefit from seamless logistics, ensuring your investment delivers both value and operational excellence, wherever you are located.

FAQ's of CNC PLASMA MACHINE:

Q: How does the CNC Plasma Machine ensure operator safety during use?

A: The machine integrates key safety features such as an emergency STOP button and a robust overload protection system, ensuring immediate response and secure operation in any situation.

Q: What software can be used with the CNC Plasma Machine?

A: The unit supports popular software like AutoCAD, FastCAM, and StarCAM, allowing for flexible and efficient file compatibility for varied design and production needs.

Q: When is it best to use the integrated water table feature?

A: The integrated water table is ideal during high-volume or extended cutting operations, as it significantly reduces dust and fumes, maintaining a cleaner and safer workspace.

Q: Where can the CNC Plasma Machine be installed?

A: Designed for industrial environments, the machine operates optimally between 0C to 45C and humidity below 95%, making it suitable for most workshop and production floors.

Q: What materials and thicknesses is the CNC Plasma Machine capable of cutting?

A: It can efficiently cut a variety of metals-mild steel, stainless steel, aluminum, copper, and brass-with cutting thickness ranging from 1 mm to 25 mm, depending on the plasma source used.
