FIBER LASER MACHINE

FIBER LASER MACHINE Specification

Phase
Single or Three Phase (customized)

Usage & Applications
Metal Sheet Cutting, Industrial Fabrication, Automotive, Aerospace, Electrical Goods

Technology
Advanced Fiber Laser Technology

Power
1000W / 1500W / 2000W / 3000W / 4000W (optional)

Working Area
1300 x 2500 mm (can be customized)

Product Type
Laser Cutting Machine

Laser Type
Fiber Laser

Material
Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Non-ferrous Metals

Cutting Thickness
0.2-20 mm (depends on material and laser power)

Cutting Area
1300 x 2500 mm (or Customizable)

Cutting Speed
0-60 m/min (depends on material and thickness)

CNC Or Not
Yes

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Water Cooling

Control Software
CypCut, Other Optional

Graphic Format Supported
AI, DXF, PLT, BMP, DST, DWG, LAS, DXP

Control System
CNC Control

Voltage
220V/380V (customizable), 50/60Hz

Weight (kg)
2500 kg (approx.)

Dimension (L*W*H)
4300 x 2300 x 1600 mm (typical model)

Capacity
Continuous Operation, Industrial Grade

Feature
High Precision, Stable Performance, Low Maintenance

Color
White/Black Combination (Customizable)

Safety System
Enclosed Structure, Emergency Stop

Laser Source Brand
Raycus, IPG, Max Photonics (Optional)

Lubrication System
Automatic Lubrication

Gas Requirements
Oxygen/Nitrogen/Air

Repeat Positioning Accuracy
0.03 mm

Positioning Accuracy
0.05 mm

Red Dot Positioning
Standard

Table Type
Sawtooth or Knife Strip (Optional)

Focusing Mode
Automatic or Manual Adjust Focus

Drive System
Servo Motor (Yaskawa/Panasonic)

Maximum Acceleration
0.5G - 1.0G (Model Dependent)

Power Supply
Stable, Isolated Power Supply Included

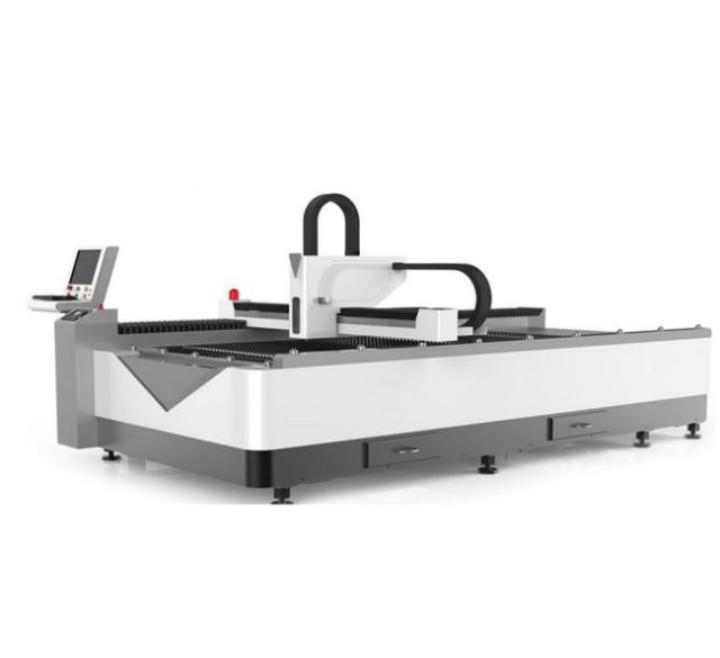

About FIBER LASER MACHINE

Harness prodigious precision and classic engineering with our FIBER LASER MACHINE-an exemplary solution for high-speed metal cutting. Reserve your advance purchase to procure a system equipped with automatic or manual adjust focus, superb positioning accuracy of 0.05 mm, and astonishing repeatability at 0.03 mm. Driven by servo motors (Yaskawa/Panasonic), this gorgeous machine offers a choice of sawtooth or knife strip tables and laser source brands (Raycus, IPG, Max Photonics). Safety and stability are assured by enclosed structures, emergency stops, and isolated power supply. Cutting-edge performance for a range of metals awaits your order.

Versatile Application and Usage Features

The FIBER LASER MACHINE is designed for flexible deployment in industrial fabrication sites, automotive production, aerospace projects, and electrical goods manufacturing. With its high-precision CNC control and automated features, it suits batch, continuous, and custom usage types. Whether you require detailed prototype work or volume production, this machine easily adapts to different types of usage, delivering impeccable results across stainless steel, aluminum, brass, copper, and other non-ferrous metals.

FOB Port, Delivery Timeline, and Supply Estimates

Our FIBER LASER MACHINE ships via prominent FOB ports for global convenience. The estimated delivery time for your order depends on configuration, usually within 4-8 weeks from the date of advance purchase. With robust supply ability, we guarantee consistent stock to fulfill your procurement needs. You may request the current list price or estimate the asking price for your preferred model and power range to suit your operational demands.

FAQ's of FIBER LASER MACHINE:

Q: How does the automatic focus adjustment benefit industrial users?

A: Automatic focus adjustment streamlines the cutting process, providing consistent, high-precision cuts on a variety of materials without manual intervention. This increases efficiency and reduces downtime for industrial users.

Q: What materials can this fiber laser machine process efficiently?

A: The machine can cut stainless steel, carbon steel, aluminum, brass, copper, and other non-ferrous metals with accuracy, handling thicknesses from 0.2 mm up to 20 mm depending on the laser power.

Q: When should I consider the advance purchase or reservation option?

A: Advance purchase or reservation is highly recommended when you require custom configurations, specific delivery dates, or to ensure priority procurement in high-demand periods.

Q: Where is the best site of application for this machine?

A: The fiber laser machine excel in industrial environments such as fabrication workshops, automotive plants, aerospace manufacturing units, and electrical goods production facilities.

Q: What is the process for ordering and delivery of the laser machine?

A: You may contact us to receive an estimate or list price based on your configuration. After confirming the order, delivery typically takes 4-8 weeks. All machines are shipped via FOB ports with full documentation.
